If you want to create a graphical representation of a sequence of events, such as the milestones in a project or the main events of a person's life, you can use a SmartArt graphic timeline. After you create the timeline, you can add more dates, move dates, change layouts and colors, and apply different styles.
Create a timeline
-
On the Insert tab, selectÂ
-

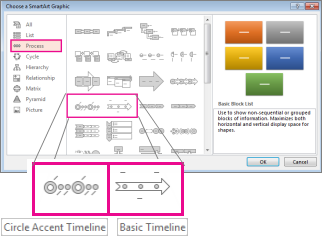

In the Choose a SmartArt Graphic gallery, select Process, and then double-click a timeline layout.

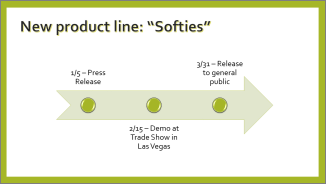

Tip:Â There are two timeline SmartArt graphics: Basic timeline and Circle Accent Timeline, but you can also use almost any process-related SmartArt graphic.
-
Select [Text], and then type or paste your text in the SmartArt graphic.
Note: You can also open the Text Pane and type your text there. If you do not see the Text Pane, on the SmartArt ToolsDesign tab, select Text Pane.
-

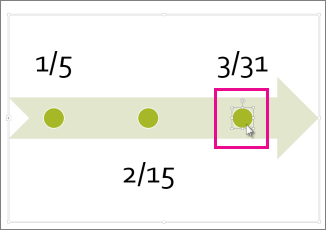

Select a shape in the timeline.
-
On the SmartArt Design tab, do one of the following:
-
To add an earlier date, select Add Shape, and then select Add Shape Before.
-
To add a later date, select Add Shape, and then select Add Shape After.
-
-
In the new date box, type the date that you want.
-

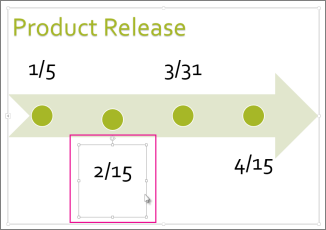

On the timeline, select the date you want to move.
-
On the SmartArt Design tab, do one of the following:
-
To move a date sooner than the selected date, select Move Up.
-
-
To move a date later than the selected date, select Move Down.
-
Select the SmartArt graphic timeline.
-
On the SmartArt Design tab, in the Layouts group, select
Note: To view only the timeline and process-related layouts, at the bottom of the layouts list, select More Layouts, and then click Process.
-
Pick a timeline or process-related SmartArt graphic, like the following:
-

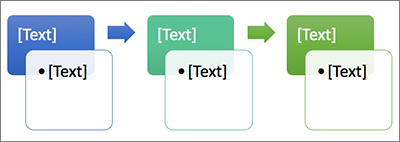

To show progression in a timeline, click Accent Process.
-

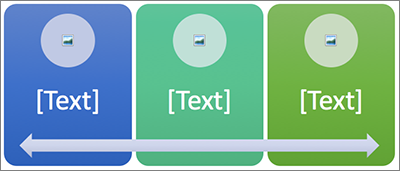

To create a timeline with pictures or photos, click Continuous Picture List. The circular shapes are designed to contain pictures.
-
-
Click the SmartArt graphic timeline.
-
On the SmartArt Design tab, click
Note:Â If you don't see the SmartArt Design tab, make sure you've selected the timeline.
-
Select the color combination that you want.
Tip:Â Place your pointer over any combination to see a preview of how the colors look in your timeline.
A SmartArt style applies a combination of effects, such as line style, bevel, or 3-D perspective, in one click, to give your timeline a professionally polished look.
-
Select the timeline.
-
On the SmartArt Design tab, choose the SmartArt style you want.
Tip:Â For more styles, selectÂ
See also
Create a timeline

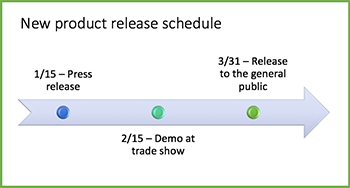

When you want to show a sequence of events, such as project milestones or events, you can use a SmartArt graphic timeline. After you create the timeline, you can add events, move events, change layouts and colors, and apply different styles.
-
On the Insert tab, SelectÂ
-
Select Basic Timeline or one of the other process-related graphics.
-
Select the [Text] placeholders and enter the details of your events.
Tip: You can also open the Text Pane and enter your text there. On the SmartArt Design tab, select Text Pane.
-
Select a shape in the timeline.
-
On the SmartArt Design tab, select Add Shape, and then choose Add Shape Before or Add Shape After.
-
Enter the text you want.
-
On the timeline, select the text of the event you want to move.
-
On the SmartArt Design tab, choose Move Before (left), or Move After (right).
-
Select the timeline.
-

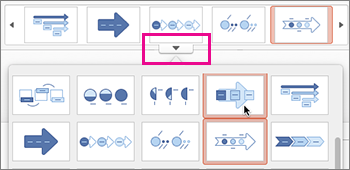

On the SmartArt Design tab, point to the layout panel and select the down arrow.
-
Pick a timeline or process-related SmartArt graphic, like the following:
-
To show progression in a timeline, select Accent Process.
-
To create a timeline with pictures or photos, select Continuous Picture List. The circular shapes are designed to contain pictures.
-
-
Select the timeline.
-
On the SmartArt Design tab, selectÂ
Give your timeline a professional look by using a SmartArt style to apply a combination of effects, such as line style, bevel, or 3-D perspective.
-
Select the timeline.
-
On the SmartArt Design tab, select the style you want.
